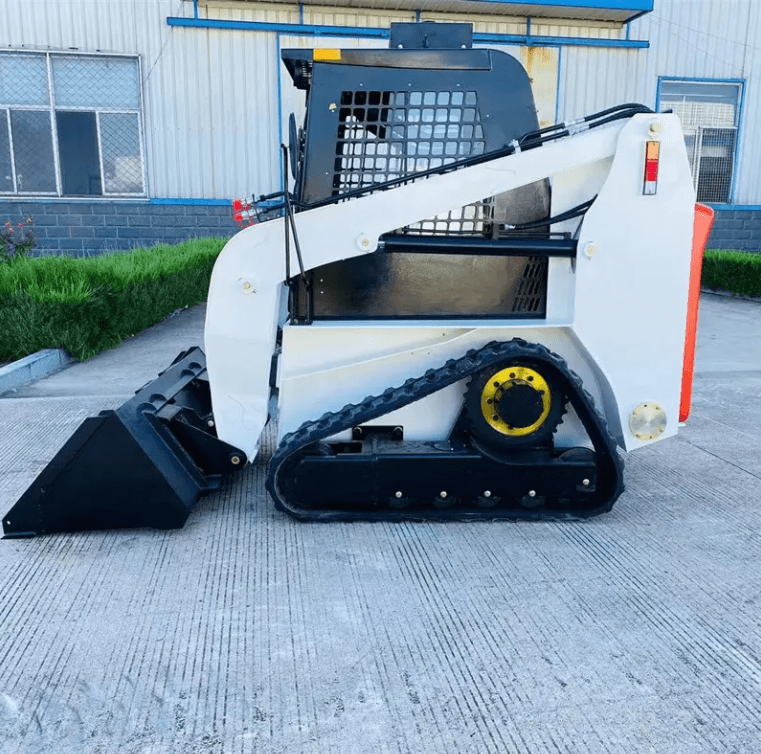

The tracked skid steer loader is variable working arm ensures the load carrying capacity of the machine. The control system adopts hydraulic pilot control, responsive. Products are exported to Europe and America.
| Engine model | Xinchai 490 |
| No.of cylinders | 4cylinder |
| Net Power | 42kw |
| LS(EPA)-42.5kw/1.7 Note:The engine is optional with the Korean LS(EPA)-42.5kw/1.9L | |
Multi-Functional Machine: This skid steer loader is designed for various construction projects, offering versatility and efficiency in a single machine.
| ENGINE | |
| Engine model | Xinchai 490 |
| No.of cylinders | 4cylinder |
| Net Power | 42kw |
| LS(EPA)-42.5kw/1.7 Note:The engine is optional with the Korean LS(EPA)-42.5kw/1.9L | |
| Dimensions | |
| Operating height | 3660mm |
| The height of the shove | 2370mm |
| Height to top | 2349mm |
| Overall length with GP bucket | 3150mm |
| Overall length without bucket | 2170mm |
| Wheelbase | 1230mm |
| Overall width | 1422mm |
| Mini ground clearance | 230mm |
| Angle of departure | 18.59 |
| Bucket capacity | 0.4CBM |
| Rated loading capacity | 700kgs |
| Machine weight | 2700kgs |
| Hydraulic system | |
| Working system pressure | 22Mpa |
| Working system Flow rate | 80L/min |
| Driving System pressure | 25Mpa |
| Driving system Flow rate | 95L/min |
